Falcon SC1432-48

Falcon SC1432-48

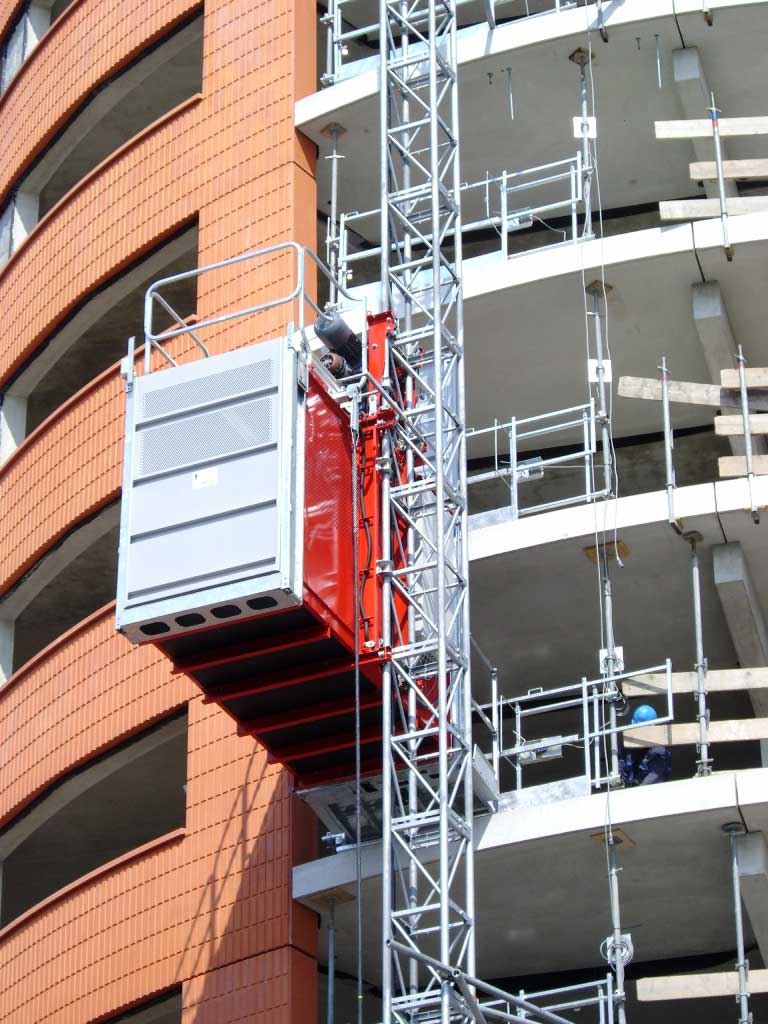

FALCON SC1432 HOIST is the smallest model of our Falcon H48 personnel and material hoist family. Its lifting capacity is 1400 kg or 17 persons with lifting speed 36 m/min. Maximum lifting height with anchored mast is 200 m, by request the higher height is possible.

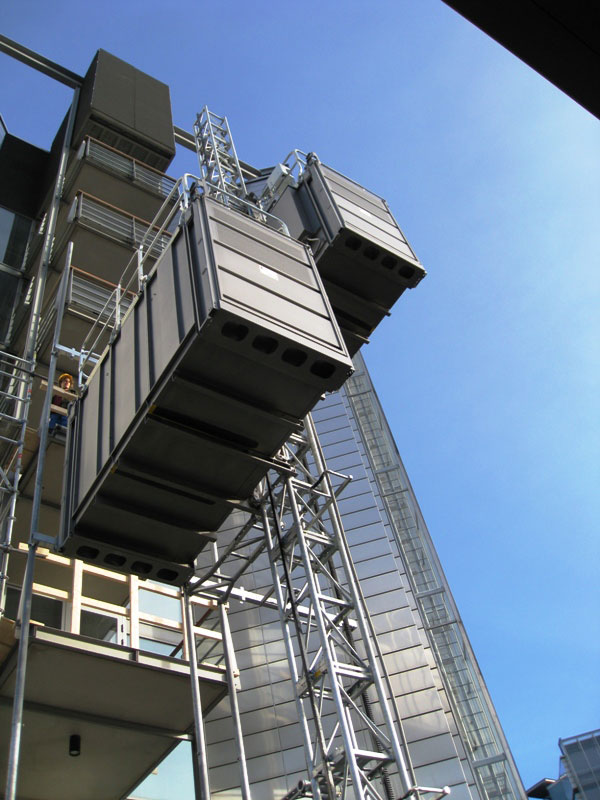

THE STANDARD CAGE length is 3,2 m but if a smaller footprint is required, hoist can equiped with a 2.4 m cage. It is possible to use two cage in same mast, then lifting capacity can be doubled. Additionally, there is a wide variety of landing gates, doors and mast anchoring systems. SC1432 hoist can also be equipped with a frequency controller (FC). It provides for smooth starting and stopping with a low starting current and less wear and tear.

Capacity	SC1432-48
Payload	1400 kg or 17 persons
Speed	36 m / min
Max. lifting height, with anchored mast	200 m (higher mast by request)
Max. lifting height, free standing	6 m
Max. anchoring distance	12 m (depending on anchor type)
Free mast after topmost anchoring	6 m (depending on installation)
Max. overhang double single	4,5 m 6,0 m
Maximum wind speed during erection and dismantling during operation when cage is at the ground station	12,5 m/s 20,0 m/s 42,0 m/s
Operation temperature	−25 – +40 °C
Noise level	< 85 dB(A)

Weights and Dimensions	SC1432-48 Single	SC1432-48 Twin
Cage floor height from the ground with the hoist at the ground station, min.	395 mm	395 mm
Cage dimensions internal length width height cage weight	3200 mm 1390 mm 2055 mm 1200 kg	3200 mm 1390 mm 2055 mm 2 x 1200 kg
Cage door opening width height	1490 mm 2000 mm	1490 mm 2000 mm
Mast section dimensions square mast height mounting bolts rack module	539,5 x 539,5 mm 1508 mm M18x160/8,8 6 mm	539,5 x 539,5 mm 1508 mm M18x160/8,8 6 mm
Mast section weight with one rack two rack	80 kg	91 kg

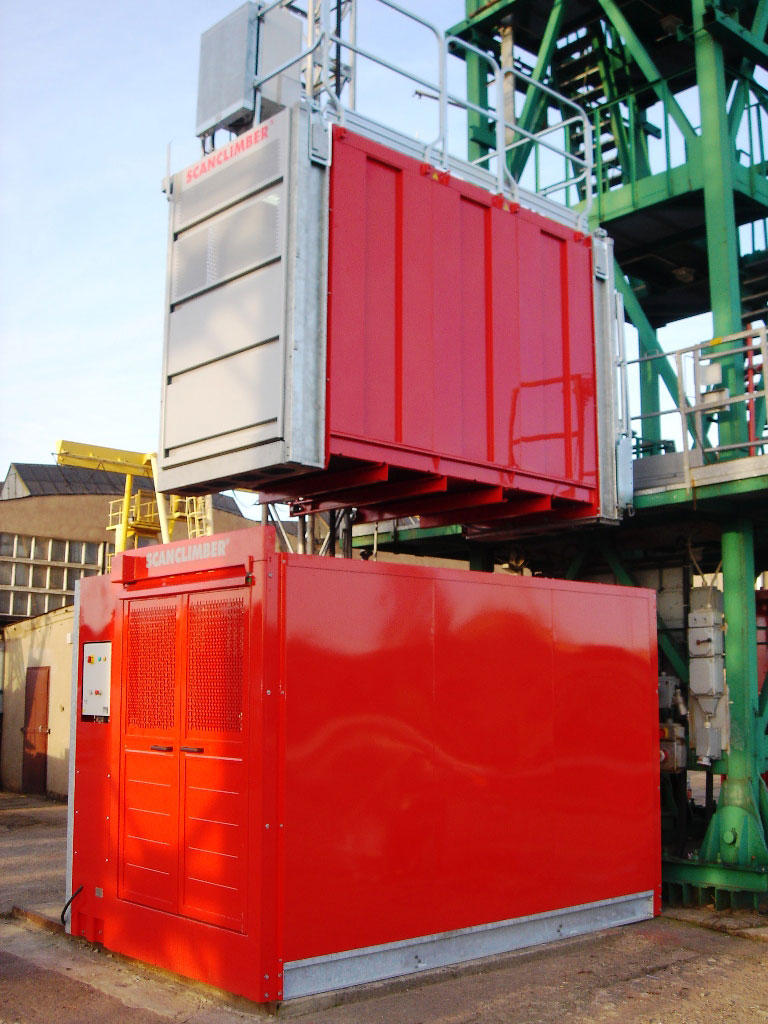

Ground station dimensions length width height weight	3805 mm 2470 mm 2640 mm 1150 kg	3805 mm 4940 mm 2640 mm 2300 kg
Top drive unit weight	470 kg	470 kg

Electrical Data / cage	SC1432-48
Power – lifting motors	2 x 9.2 kW
Supply voltage	400 V / 50 Hz
Control voltage	48 V / 50 Hz 24 DC
Power consumption	19.0 kW
Max. starting current	226 A
Size and type of the main fuse	63 A / slow
Socket for hand tools	230 V / 10 A

Safety Equipment	SC1432-48
Safety brake (UC-3.0)
Emergency lowering system
Final limit switch on the top and bottom end of the mast
Functional limit switches on the top and bottom end of the mast
Safety railing (h=1,10 m) and kick board on the roof
Emergency stop buttons at the ground station, in the cage and the roof
Overload detection device
Residual current device
Landing door/gate closed, limit switch
Landing door locking device in closed position, limit switch
Cage door closed limit switches
Cage door locking device in closed position, limit switch
Service key switch on the roof
Root hatch closed limit switch
Lockable service door at the ground station
Buffers at the ground station under the cage
Brakes – spring-loaded disc brake
Brake torque	150 Nm
