Centum SC10000

CENTUM SC10000 is a robust lifting machine with a rack and pinion driven work platform. It has the strongest drive unit in the product family of MCWP’s. Two 5.5 kW motors lift softly the platform with the lifting speed of 7 m / min to the required working height. Centum is an ideal choice for the heavy-duty façade works and for projects requiring an extra-large platform size at demanding heights.

THE MAXIMUM LOADING CAPACITY as a single mast arrangement is 6000 kg at a platform length of 4,1 m. The single mast configuration gives a maximum platform length of 20 m and a payload capacity of slightly over 1700 kg. The Centum’s twin mast version capacity can exceed a whopping 10000 kg at a platform length of 15,8 m. When using a twin mast configuration the platform length can safely reach up to a 48,6 m, at which the loading limit is still 1500 kg. When anchored with standard parts at constant intervals the mast can reach up to a height of 150 meters. Special anchoring allows even higher heights by request.

IMPROVES PRODUCTIVITY AND ERGONOMICS with using the MCWP’s extensions. Using Scanclimber’s platform extensions gaps and offsets between the platform and the building they are erected can be easily accessed. These extensions are adjustable and can extend the platform length up to 6 meters. They are available in three sizes; 2,6-6 m, 0-2,5 m and 0-1,8 m. These extensions help to work behind and around corners which were previously out of reach. There is also a special bricklaying extension; a platform that can be lowered 70 cm below the actual platform level, so ensuring the materials on the platform are at a comfortable height for workers.

Capacity SC10000 Single SC10000 Twin
Max. platform length 20.1 m 48.6 m
Max. lifting capacity / platform length 6000 kg / 4.1 m 10200 kg / 15.8 m
  5600 kg / 7.3 m 10400 kg / 19 m
  5300 kg / 10.5 m 8800 kg / 24.6 m
  4000 kg / 13.7 m 6600 kg / 30.2 m
  3100 kg / 16.9 m 4300 kg / 40.6 m
  1800 kg / 20.1 m 1500 kg / 48.6 m
Max. mast height, freestanding mast 19 m 18 m
Max. height with top anchor 25 m 25 m
Max. height with mast anchored 150 m 150 m
Max. anchor spacing 18 m 18 m
Vertical travel speed 8 m / min 8 m / min
Chassis drive unit speed 13 m / min
Platform height at the lowest position 1.55 m 1.55 m
Max. allowed windspeed anchored 15.5 m/s 15.5 m/s
Weights SC10000
Wheel chassis 1900 kg
Mini-chassis 434 kg
Lifting frame, fully equipped 1000 kg
Mast section 82 kg
Mast bolts per one mast section 4 kg
Platform section 1,6 m 191,6 kg
Platform section 0,5 m 97,5 kg
Railing 1,6 m 12 kg
Railing 1,6 m, with gate 26 kg
Railing 0,8 m 8 kg
Ladder 10 kg
Maxianchor 60 kg
Maxianchor, vertically adjustable 109 kg
Telescopic extension set, 1,8 m, per one platform section, w/o plywood deck 83 kg
Telescopic extension set, 2,5 m, per one platform section, w/o plywood deck 182 kg
Electrical data SC10000
Lifting motors 2 X 5.5 kW
Supply voltage 400 V / 50 Hz
Power supply fuses 3 x 32 A
Needed Power supply 60 kVA
Max Starting Current 165 A
Control Voltage 48 VAC
Socket for hand tools 230 V / 16 A
Drive motor 400 V / 1.1 kW
Safety equipment SC10000
Overspeed safety brake
Emergency stop and limit switches
Electromagnetic brake
Phase sequency relay
Residual current device

Extensions Tubes

The platform extension tubes are installed into the pockets under the platform.

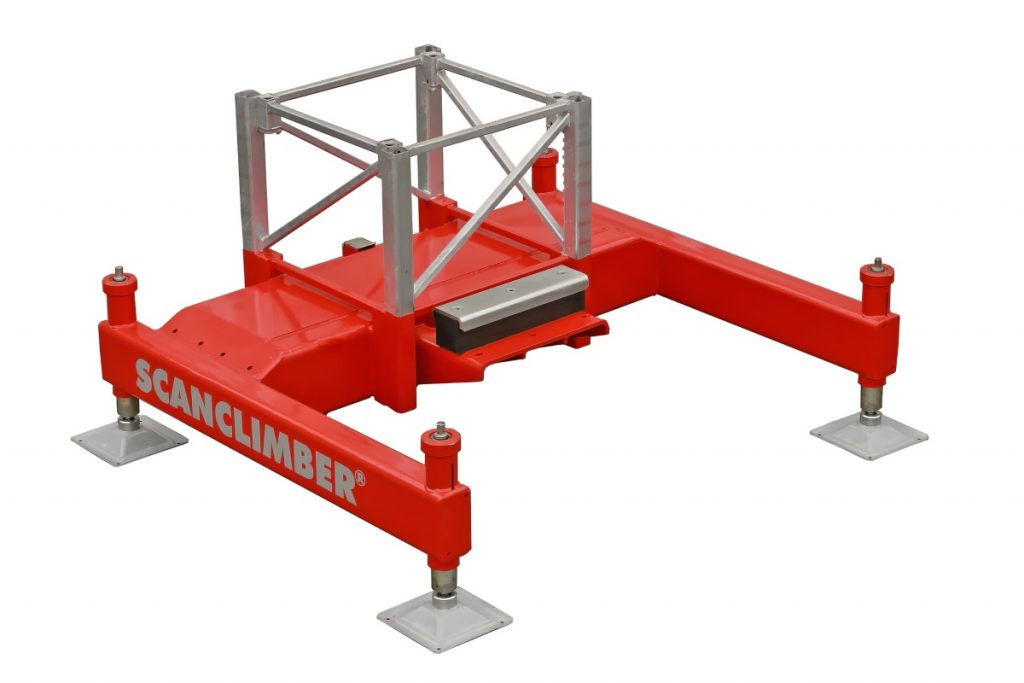

Mini Chassis

Mast Climbers Wheel Chassis can be replaced by a Mini-Chassis.

Mini Chassis with wheels

Mast Climbers Wheel Chassis can be replaced by Mini-Chassis with wheels.

Side Platform Adapter Set

Side Platform adapter set for models SC5000, SC6000, SC8000, SC10000

Adjustable Console

Adjustable console for telescopic pipe. Can be used with models SC5000, SC6000, SC8000, SC10000.

Cable Guide M70

Capble guide for models SC1300, SC3500L, SC4000, SC5000, SC6000, SC10000.
