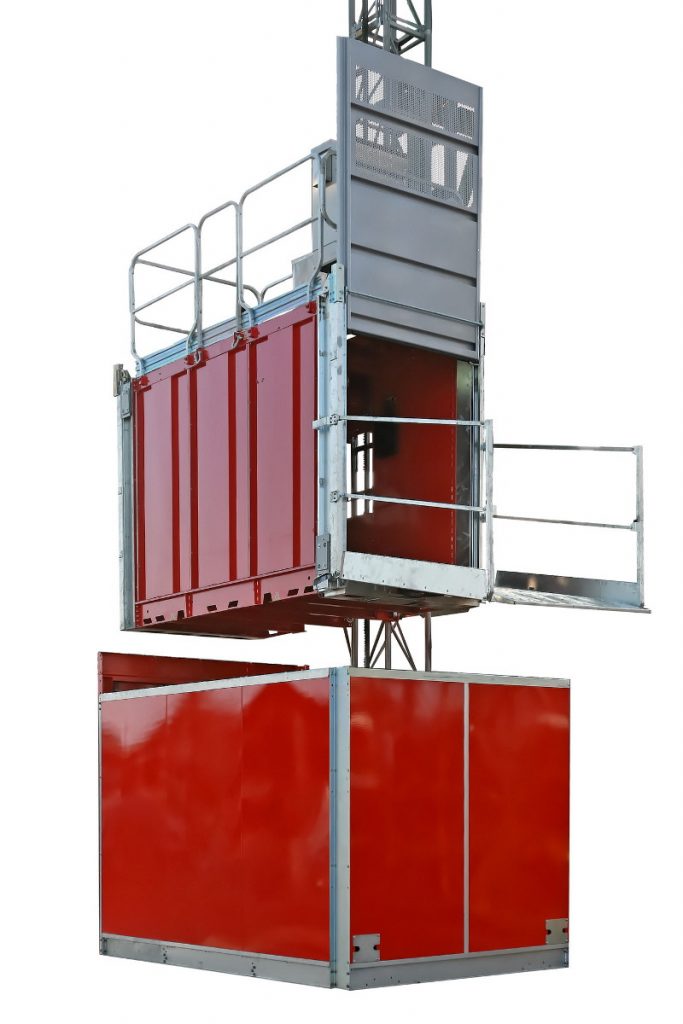

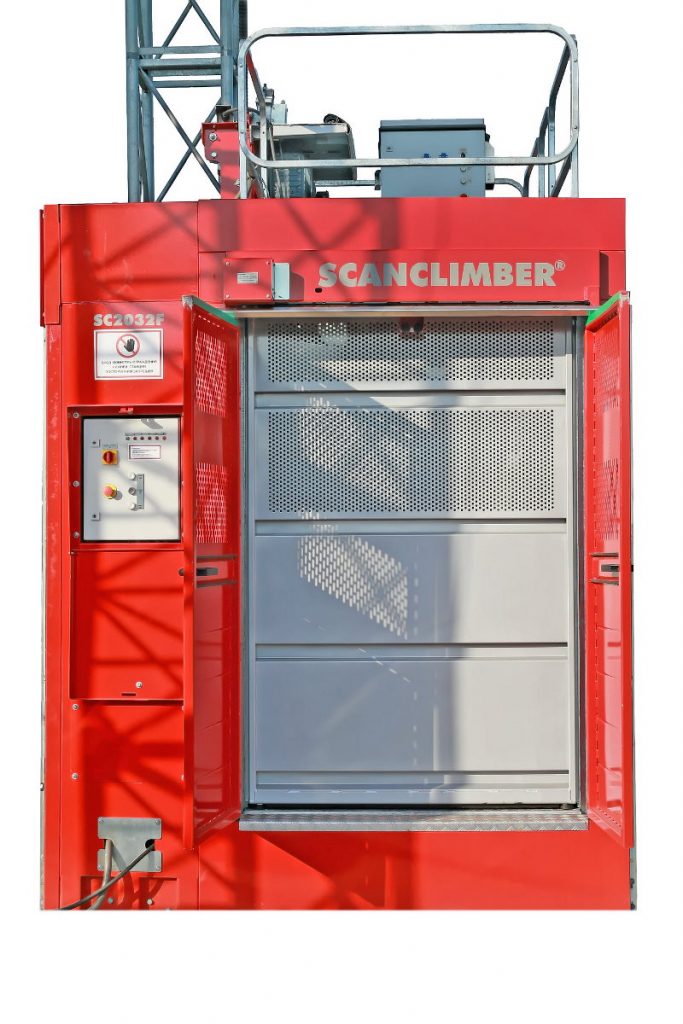

Falcon SC2032-48

FALCON SC2032-48 HOIST is the strongest hoist of our Falcon H48 personnel and material hoist family. Its lifting capacity is 2000 kg or 24 persons with lifting speed 36 m/min. Maximum lifting height with anchored mast is 200 m, by request the higher height is possible.

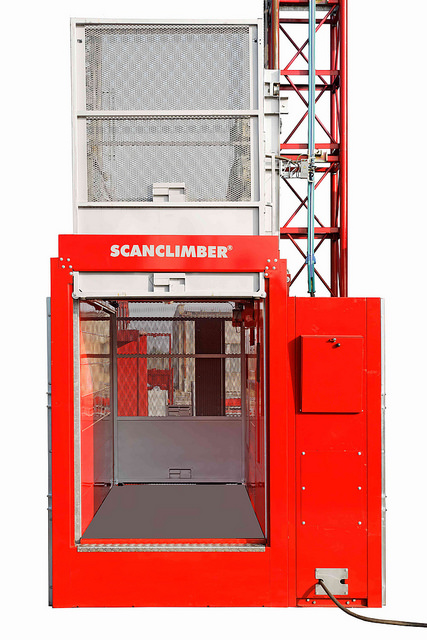

THE STANDARD CAGE length is 3,2 m but if a smaller footprint is required, hoist can equiped with a 2.4 m cage. It is possible to use two cage in same mast. Then lifting capacity can be doubled. Additionally, there is a wide variety of landing gates, doors and mast anchoring systems. SC2032-48 hoist can also be equipped with a frequency controller (FC). It provides for smooth starting and stopping with a low starting current and less wear and tear.

Capacity SC2032-48
Payload 2000 kg or 24 persons
Speed 36 m / min
Max. lifting height, with anchored mast 200 m (higher mast by request)
Max. lifting height, free standing  4.5 m (depending on installation)
Max. anchoring distance 9 m (depending on anchor type)
Free mast after topmost anchoring  4.5 m (depending on installation)
Max. overhang

  • double
  • single
4,5 m
4,5 m
Maximum wind speed

  • during erection and dismantling
  • during operation
  • when cage is at the ground station


  • 12,5 m
  • 20,0 m
  • 42,0 m/s
Operation temperature −25 – +40 °C
Noise level  < 85 dB(A)
Weights and Dimensions SC2032-48 Single SC2032-48 Twin
Cage floor height from the ground with the hoist at the ground station, min. 395 mm 395 mm
Cage dimensions internal

  • length
  • width
  • height
  • cage weight


  • 3200 mm
  • 1390 mm
  • 2055 mm
  • 1200 kg


  • 3200 mm
  • 1390 mm
  • 2055 mm
  • 1200 kg
Cage door opening

  • width
  • height


  • 1490 mm
  • 2000 mm


  • 1490 mm
  • 2000 mm
Mast section dimensions

  • square mast
  • height
  • mounting bolts
  • rack module


  • 539,5 x 539,5 mm
  • 1508 mm
  • M18x160/8,8
  • 6 mm


  • 539,5 x 539,5 mm
  • 1508 mm
  • M18x160/8,8
  • 6 mm
Mast section weight with

  • one rack
  • two rack
80 kg 91 kg
Ground station dimensions

  • length
  • width
  • height
  • weight


  • 3905 mm
  • 2470 mm
  • 2740 mm
  • 1150 kg


  • 3905 mm
  • 4940 mm
  • 2740 mm
  • 2300 kg
Top drive unit

  • weight
470 kg 470 kg
Electrical Data / Cage SC2032-48
Power – lifting motors 2 x 9.2 kW
Supply voltage 400 V / 50 Hz
Control voltage 48 V / 50 Hz  24 DC
Power consumption 23 kW
Max. starting current 100 A (with FC)
Size and type of the main fuse  63 A / slow
Socket for hand tools 230 V / 10 A



Safety Equipment SC2032-48
Safety brake (UC-3.0)
Emergency lowering system
Final limit switch on the top and bottom ends of the mast
Functional limit switches on the top and bottom end of the mast
Safety railing (h=1,10 m) and kick board on the roof
Emergency stop buttons at the ground station, in the cage and the roof
Overload detection device
Residual current device
Landing door/gate closed, limit switch
Landing door locking device in closed position, limit switch
Cage door closed limit switches
Cage door locking device in closed position, limit switch
Service key switch on the roof
Root hatch closed limit switch
Lockable service door at the ground station
Buffers at the ground station under the cage
Brakes – spring-loaded disc brake
Brake torque  250 Nm
